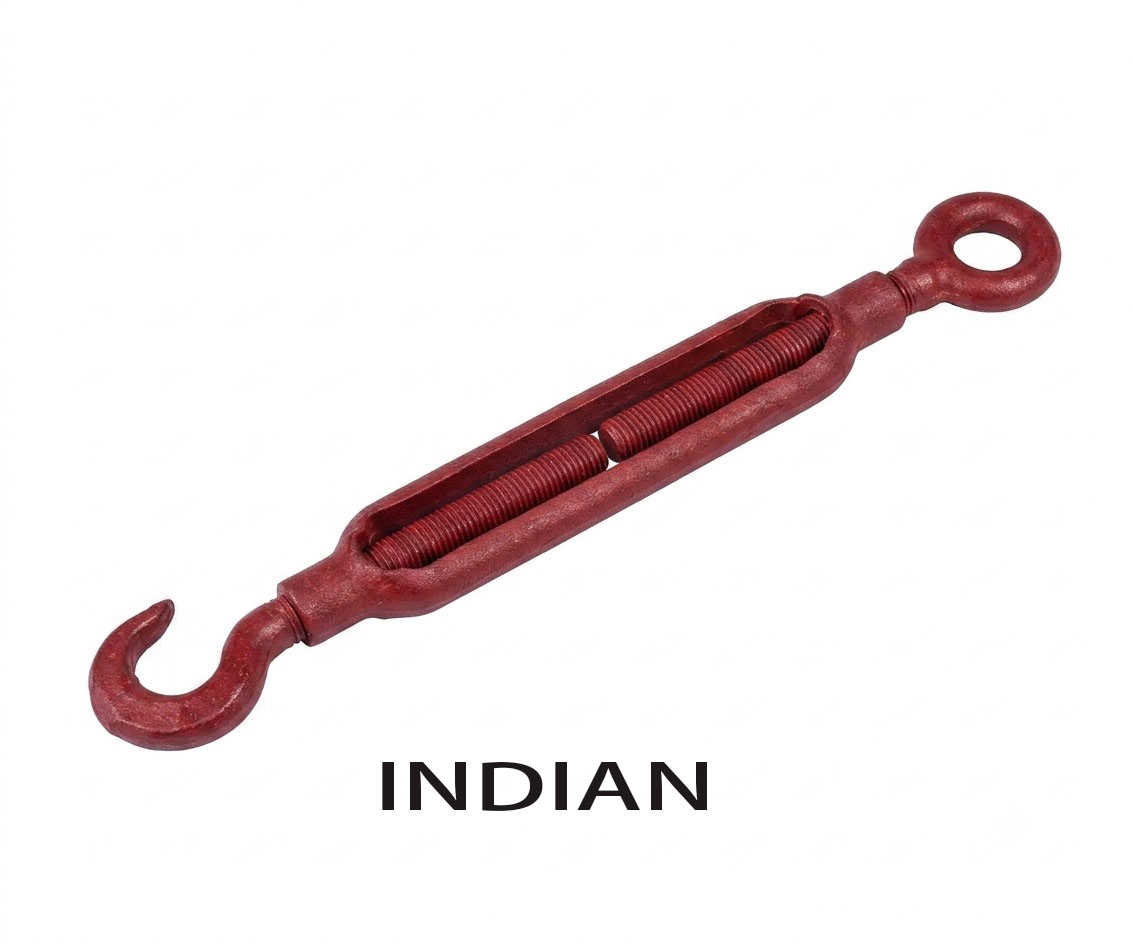

AGL0340403-EYE TO HOOK TURN BUCKLE

An Eye to Hook Turnbuckle (often abbreviated as an E&H Turnbuckle) is a highly versatile, dual-threaded linear tensioning device that combines two distinct types of end-fittings: a permanent, closed solid eye on one side and a rapid-coupling, open hook on the other.

Operating on the classic turnbuckle mechanical principle, the central body features a standard right-hand internal thread on one end and a left-hand thread on the opposite side. When the central body is rotated in one direction, both end-fittings pull inward simultaneously to eliminate line slack and apply high tension. Rotating it in the reverse direction pushes the screws outward to slacken the line. This specific hybrid configuration bridges the gap between absolute connection security and rapid deployment speed.

Technical Features

• Hybrid End-Fitting Configuration: Equipped with a closed solid loop (Eye) at one end for permanent anchor security, and an open hook (Hook) at the other for fast on-and-off rigging.
• Opposing Thread Architecture: Left-hand and right-hand thread alignment enables smooth, step-less, micro-adjustable linear tensioning without twisting or spinning the attached lines.
• Drop-Forged Steel Construction: Industrial-grade variants are drop-forged from high-tensile carbon steel or alloy steel, compressing the grain structure of the metal to handle heavy structural stresses.
• Asymmetric Load Capability: Because open hooks introduce minor bending stresses at their curves, Eye to Hook turnbuckles are rated for lower load limits than identical size Eye-to-Eye or Jaw-to-Jaw models. They maintain a standard 5:1 safety factor but are restricted to non-hoisting applications.
• Open-Body Design: Most commonly built with an open frame, allowing riggers to visually check the thread engagement depth instantly and apply lubricants easily.
• Hot-Dip Galvanized Finish: Submerged in molten zinc to create a thick, durable metallurgical barrier that prevents rust, oxidation, and weathering in harsh outdoor or coastal environments.

Primary Uses and Applications

Eye to Hook turnbuckles are strictly intended for directional pulling, tensioning, and securing applications where one side of the rigging assembly remains fixed, while the other side must be disconnected frequently:

• Commercial Shade Sails & Canopies: The closed eye is secured permanently to a wall bracket or mast via a shackle, while the open hook allows installers to quickly clip and tension the perimeter wire rope of fabric sunshades or resort tents.
• Temporary Boundary & Sports Netting: Tensioning guide wires for indoor and outdoor sports nets (like volleyball boundary lines, tennis nets, or batting cages) that require rapid seasonal breakdown.
• Light-Duty Cargo Lashing & Tie-Downs: Securing light machinery, building materials, or agricultural tools onto flatbed utility trucks and transport trailers for local transit.
• Suspension of Temporary Event Infrastructure: Adjusting the height and tension of overhead lines holding exhibition banners, market stalls, safety netting, or decorative outdoor festival lighting.
• Field Fencing and Gate Alignment: Quickly dropping the hook onto a fence post or chain line to pull farm gates or wire fencing taut during field construction assembly.

Key Advantages

• Best of Both Worlds: Offers the absolute non-slip security of a closed eye at the permanent anchor terminal, combined with the lightning-fast coupling of an open hook at the operational end.
• Rapid On-Site Knockdown: Perfect for seasonal installations or event setups that must be tensioned, adjusted, and torn down repeatedly without spending time unbolting hardware or pins.
• Zero Additional Tooling Required: Operators do not need specialized wrenches, sockets, or pliers to attach the hook end; the central body can be tensioned manually using a simple turning pin or screwdriver inserted through the open frame.
• Self-Centering Hook Axis: The inner curve of the hook naturally slides to the center of an anchoring ring or eye-bolt, forcing the pulling tension to align cleanly along the true linear axis of the turnbuckle body.
• Highly Economical Asset: Provides a highly cost-effective pulling and positioning solution that eliminates the need for purchasing secondary rigging shackles or clevis pins on the hook side.

Critical Safety & Operation Guidelines

⚠️ Strict Non-Lifting Restriction: Eye to Hook turnbuckles are NEVER permitted for overhead crane lifting or critical hoisting tasks. Because the hook side is open, any sudden momentary slack or vibration in the line can cause the hook to disengage entirely, dropping the load.

🔒 Thread Engagement Rule: For a safe assembly, always ensure that both threaded shanks are turned deep enough into the central barrel. At a minimum, the full diameter of the bolt shank must be completely engaged inside the body threads. Never over-extend a turnbuckle past its maximum rated length limit.
