AGL034010-Heavy Duty Ratchet Machine

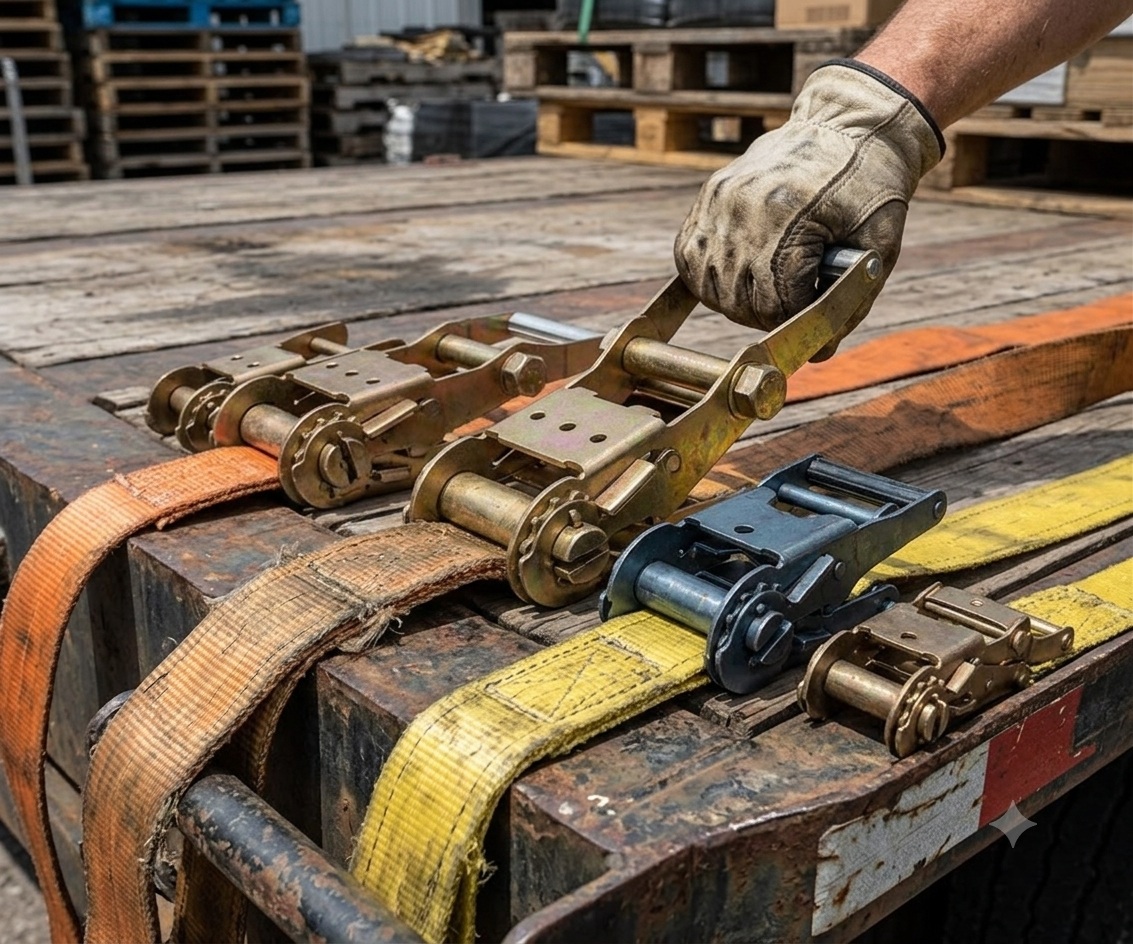

A Heavy-Duty Ratchet Machine (commonly known in the industrial lifting, safety, and cargo-securing industry as a Heavy-Duty Ratchet Tensioner or Heavy-Duty Ratchet Buckle) is a high-capacity mechanical tool designed to pull, tension, and lock heavy-duty lashing straps or webbing.

Unlike standard 1-inch or 2-inch commercial tie-downs used for light cargo, heavy-duty ratchet machines are engineered from thickened structural steel to handle 3-inch (75mm) and 4-inch (100mm) wide web straps, managing heavy industrial loads.

1. Detailed Mechanical Breakdown

A heavy-duty ratchet machine is a heavy-weight manual assembly built to withstand severe mechanical strain:

• Long-Handle Design: Equipped with an extended or ergonomic double-finger long handle. The increased length maximizes leverage, enabling an operator to apply massive tension with minimal physical effort.
• Dual-Gear Drive Wheels: Features two thick, hardened-steel spur gears on either side of the center drum (spool). Dual gears distribute the tension forces evenly, preventing twisting or warping under heavy loads.
• Reinforced Locking Pawls (Dual Catch System): Thick, spring-loaded steel bars drop into the gear teeth simultaneously to mechanically lock the spool. It physically cannot counter-rotate or slip until manually released.
• High-Tensile Chassis: The frame is stamped or forged from heavy-gauge structural carbon steel, ensuring the body does not flex or bend when tensioned to its upper limits.

2. Technical Specifications

These specifications are standard across heavy-duty industrial sectors catering to logistics, construction, and maritime lashing:

Parameter	Heavy-Duty Industrial Specification Ranges
Material Construction	Heavy-Gauge High-Tensile Carbon Steel / Alloy Steel
Surface Treatment	Yellow Zinc-Plated, Hot-Dip Galvanized, or Powder Coated (For premium corrosion resistance against sea spray and rain)
Compatible Webbing Widths	75 mm (3-inch) and 100 mm (4-inch)
Working Load Limit (WLL)	3,333 kg (3.3 Ton) to 5,000 kg (5 Ton)
Minimum Breaking Strength (MBS)	10,000 kg (10 Ton) up to 11,000 kg (11 Ton)
Handle Types	Long Handle, Ergo Handle (Pull-Down type for easier posture), or Rubber-Grip Double Handle

3. Common Uses & Industrial Applications

Heavy-duty ratchet machines are deployed anywhere massive, non-rigid, or heavy-profile items require absolute immobility:

• Heavy-Duty Flatbed Logistics: Securing massive earthmoving components, heavy military equipment, large industrial boilers, and concrete blocks onto multi-axle trailers.
• Maritime & Container Lashing: Used extensively as a primary tie-down machine inside or on top of shipping containers to secure large export crates, oversized industrial valves, and machinery blocks.
• Steel & Pipe Transport: Securing large bundles of high-diameter steel pipes, structural steel girders, and metal coils where high-capacity web lashings are preferred over chains to prevent surface scratching.
• Industrial Site Safety & Temporary Structures: Tensioning high-capacity fall-arrest lifeline systems, securing heavy wind-resistant commercial tents, or anchoring large temporary construction scaffolding.

4. Key Advantages of Heavy-Duty Ratchet Machines

• Massive 10-Ton Breaking Strength: Fills the gap between standard lightweight textile tie-downs and heavy steel chains. It offers the extreme holding capacity of a chain binder but with the flexibility of a textile strap.
• Ergo-Design / High Mechanical Advantage: The long handle multiplies the human input force significantly. It allows workers to rapidly secure heavy-tonnage loads without suffering excessive physical fatigue or strain.
• Non-Damaging Securement: When paired with heavy-duty polyester lashing, it applies thousands of kilograms of holding force without crushing, scratching, or denting the finished edges of high-value industrial cargo (such as painted equipment or precision-machined parts).
• Absolute Fail-Safe Safety: The dual locking pawls eliminate the risk of accidental release. Even under high dynamic vibrations—such as a trailer passing over rough terrain or a cargo vessel facing heavy sea swells—the mechanical lock remains completely unyielding.
• High Weather and Salt-Water Resistance: Coated with thick yellow zinc or galvanization, the entire machine resists corrosion, rust, and chemical exposure, ensuring smooth gear and spring operation over years of outdoor service.
